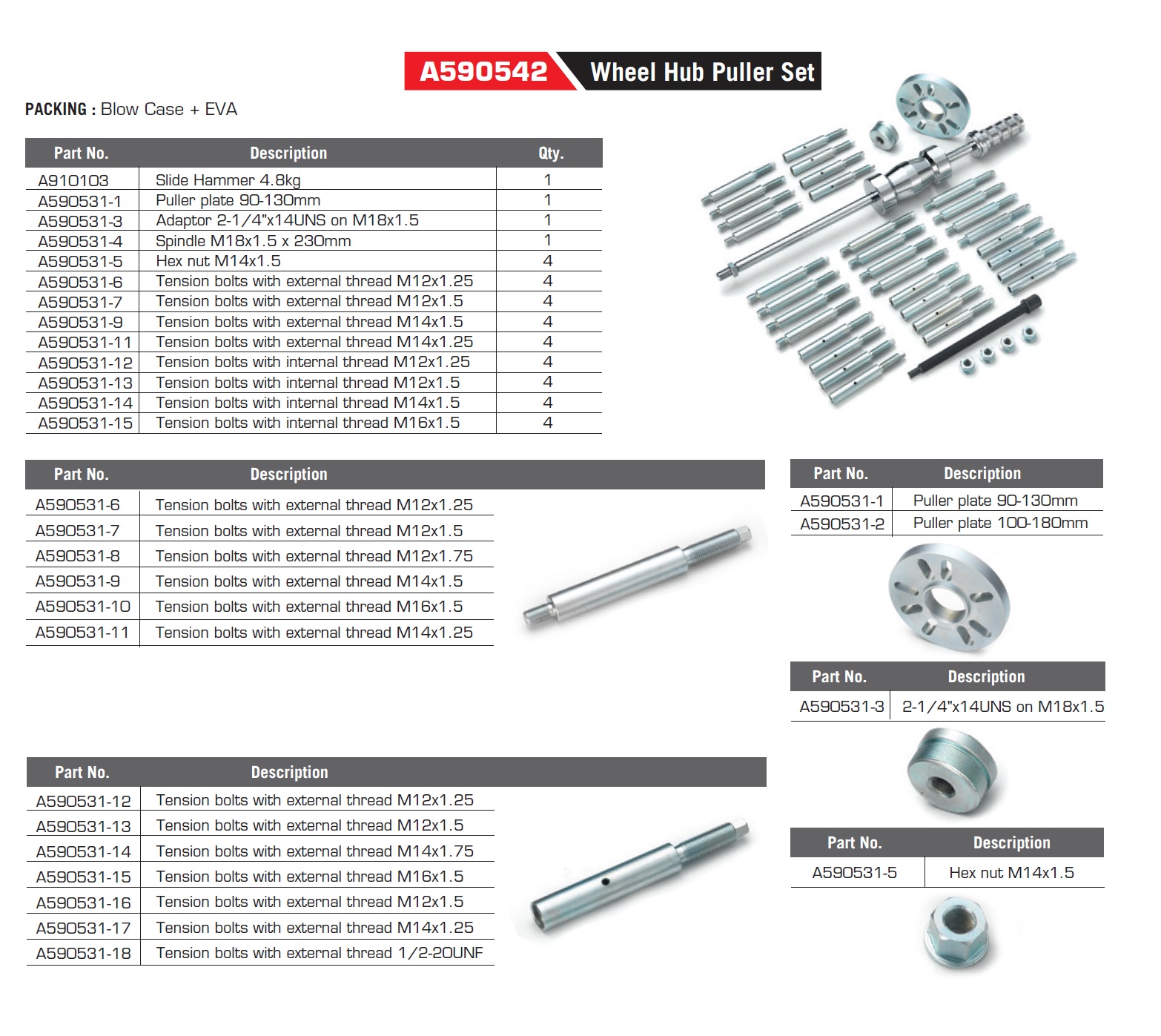

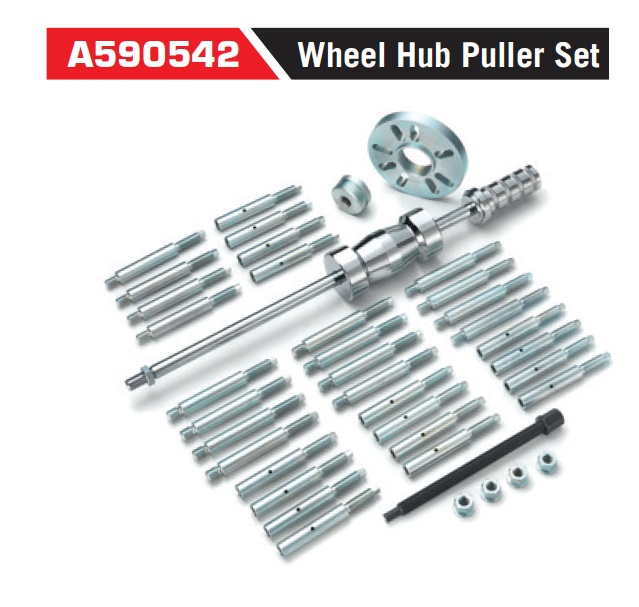

A590542 Wheel Hub Puller Set
- Model：
- A590542
Detail Specifications
.This tool set is made to remove fixed or glued drive shafts as well as wheel hubs. The tool set can be upgraded with optionally available manual or hydraulic drives.
.Spindle: M18x1.5 x 230mm
.Hex nut M14x1.5 with flange
.Tension disc for bolt circles of 90 - 130 mm, internal thread 2-1/4'' - 14 UNS
.Tension bolts with external thread, 4pcs per size: M12x1.25 / M12x1.50 / M14x1.25 / M14x1.50
.Tension bolts with internal thread, 4pcs per size: M12x1.25 / M12x1.50 / M14x1.50 / M16x1.50
.PACKING : Blow Case + EVA
